Business mobile two way radio ham radio

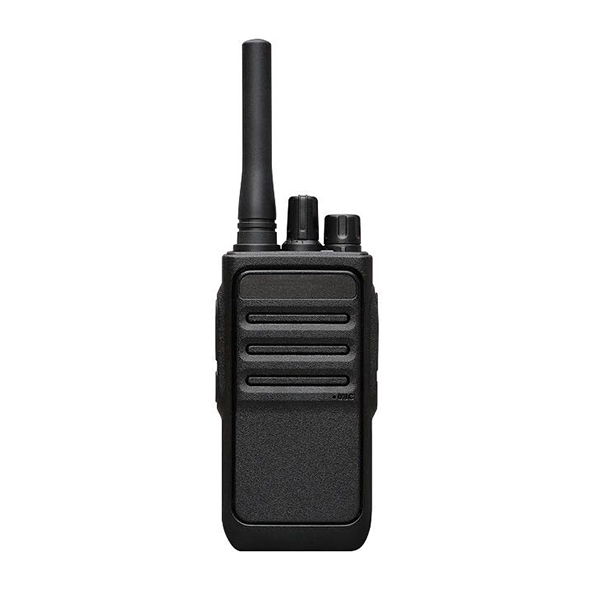

GT09 WOLKIE TALKIE

Main features
Frequency400~470MHZ
Channel No.:16 CH
Brand Name: shenzhen(China)
Chinese and English prompts
Color: black
Battery Capacity:
Output Power:0.5/4W
Weight:218g
Receiver spec:
Frequency range: 400- 470Mhz
Receiving Sensitivity ≤ 0.2μV
Occupied bandwidth: ≤ 16KHz
Selectivity: ≥65dB
Inter Mediation: ≥55dB
Audio power output:>500mW
Modulation distortion: ≤10%
Frequency stability:   5ppm
Current:  standby 60mA, working ＜ 160mA
Audio response:  +1~-3dB
Transmitter spec:
RF output power  :   2W to  0.5W
Frequency range  :   400-470Mhz
Modulation Type  :  FM
Spurious radiation:   ≤ 0.75 uW
Modulation  noise:  ＜-40dB
Modulation distortion: ＜5%
Frequency stability:   5ppm
Max Fr.Deviation:    ≤ 5KHz
Current: ≤ 1250mA
Audio response(300-3400Hz):  +1~-3dB
Adjacent Ch. Power:  ≥60dB

86-18665951240

Skype Email message

Product Details
Product Parameter

Main features 5-15km talk range

Frequency400~470MHZ

Channel No.:16 CH

Shenzhen FSM Walkie-Talkie Co., Ltd

Color: black

Battery Capacity:

Output Power:0.5/5W

Weight:228g

Receiver spec:

Receiving Sensitivity ≤ 0.2μV

Occupied bandwidth: ≤ 16KHz

Selectivity: ≥65dB

Inter Mediation: ≥55dB

Audio power output:>500mW

Modulation distortion: ≤10%

Frequency stability: 5ppm

Current: standby 60mA, working ＜ 160mA

Audio response: +1~-3dB

Transmitter spec:

RF output power : 5W to 0.5W

Frequency range : 400-470Mhz

Modulation Type : FM

Spurious radiation: ≤ 0.75 uW

Modulation noise: ＜-40dB

Modulation distortion: ＜5%

Frequency stability: 5ppm

Max Fr.Deviation: ≤ 5KHz

Current: ≤ 1250mA

Audio response(300-3400Hz): +1~-3dB

Adjacent Ch. Power: ≥60dB
