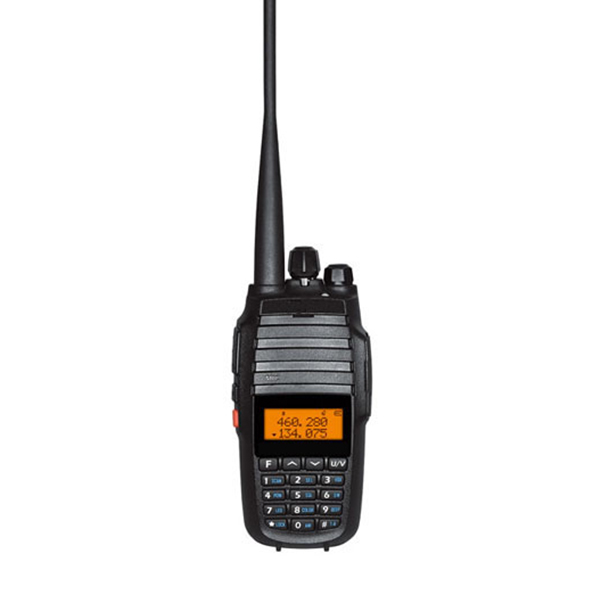

GM80

Main features  4-32km talk range

Frequency：VHF:134-174MHZ, 136-174MHZ,
                     UHF:400~480MHZ 400-520MHZ

Channel No.:128X2 CH

Shenzhen FSM Walkie-Talkie Co., Ltd

Color: black

Battery Capacity:

Output Power:0.5/5W

Weight:230g

Receiver spec:

Receiving Sensitivity ≤ 0.2μV

Occupied bandwidth: ≤ 16KHz

Selectivity: ≥65dB

Inter Mediation: ≥55dB

Audio power output:>500mW

Modulation distortion: ≤10%

Frequency stability:   5ppm

Current:  standby 60mA, working ＜ 160mA

Audio response:  +1~-3dB

Transmitter spec:

RF output power  :   5W to  0.5W

Frequency range  : VHF:134-174MHZ, UHF 400-520MHZ

Modulation Type  :  16KF¢3E/11K¢F3E

Spurious radiation:   ≤ 0.75 uW

Modulation  noise:  ＜-40dB

Modulation distortion: ＜5%

Frequency stability:   5ppm

Max Fr.Deviation:    ≤ 5KHz

Current: ≤ 1250mA

Audio response(300-3400Hz):  +1~-3dB

Adjacent Ch. Power:  ≥60dB
